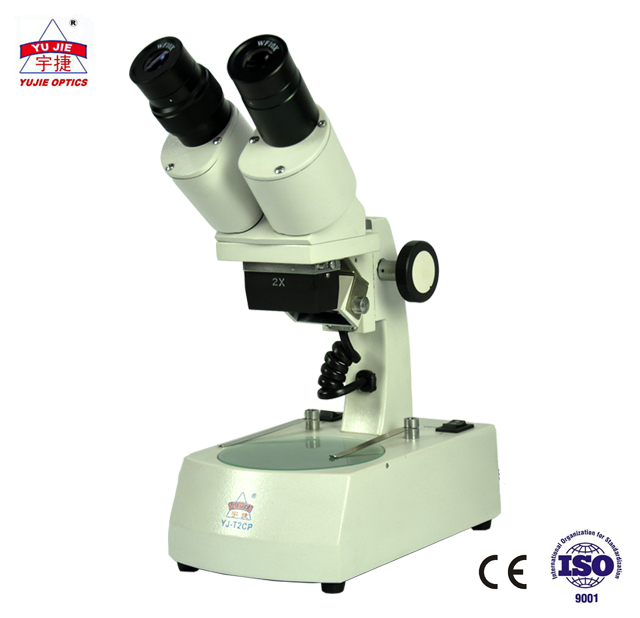

YJ-T2CP
2019-04-30 11:50:26 Click: 4090
This series microscope is a basic stereo microcsope with fixed setting. It is with large clear range, uniform field and easy operation. This microscope is used extensively world agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
Production Description
|  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |
| Objective | Paired Sliding Objectives 1X, 2X, 3X and 4X for selecting, Working Distance: 1X-55mm, 2X-81mm, 3X-61mm, 4X-57mm |
| Head | Articulated Free Binocular Head, Interpupillary Distance: 55-75mm, 45° Inclined |
| Focusing Adjustment | Rack and Pinion Focusing with Mechanism for Adjusting Focusing Torque |
| Arm Type | Arm |
| Illumination | Top/Bottom Light :12V/10W Halogen Lamp or LED Lamp, With Ф95mm Frosted Glass Stage Plate |
| Optional | 1.WF15X, WF20X; 2. Rechargeable LED Lamp |
| Net Weight | 2.3kg |
Package
1set/Foam + Inner Box
4sets/Carton
Gross Weight: 10.5kg
Carton Dimension: 61X35X36cm
